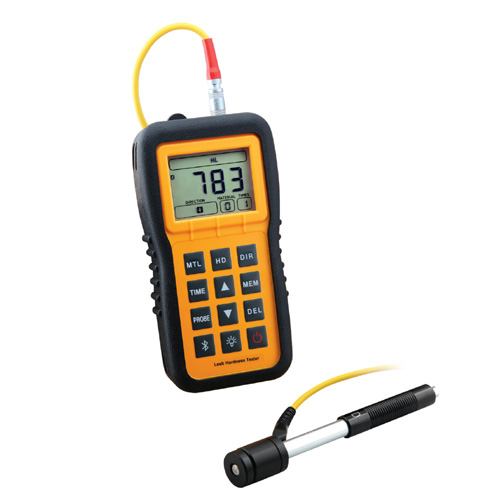

Portable Hardness Tester AJH360

Product Infomation
The AJH360 model portable hardness tester impact body, which is equipped with tungsten carbide, impacts into the work piece and rebounds back. The rebound and impact velocities are measured at the 1mm point from the work piece in the following way: the integrated permanent magnet will produce directly proportional voltage with the impact velocity. The Leeb hardness values are calculated by the following formula: HL=1000×( Vb / Va ) In Which: HL: Leeb hardness values Vb : the voltage produced during the rebound of impact body Va : the voltage produced during the impact of impact body
  • Model:AJH360
  • Specifications:HLD(200-960), HRC(19.8-68.5), HRB(13.5-100), HB(30-651), HV(80-976), HS(26.4-99.5), σb (375-2639)
  • Color:Yellow
  • Brand:AJR
Details

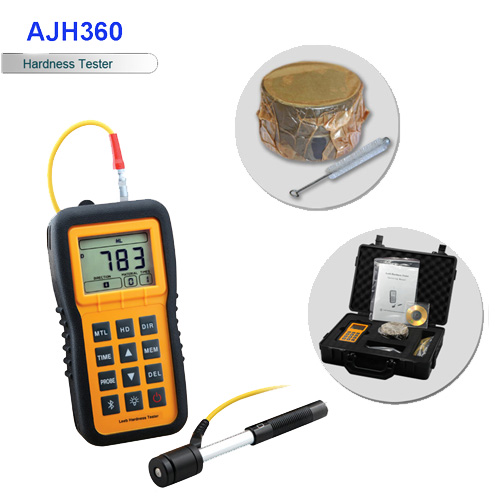

Portable Hardness Tester AJH360 model

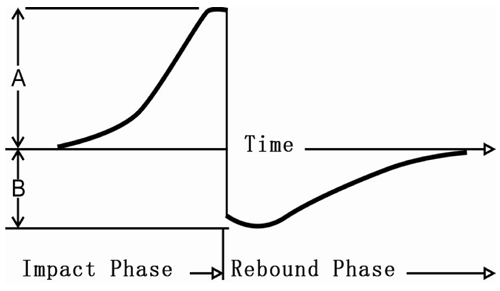

Working  Principle

The impact body, which is equipped with tungsten carbide, impacts into the work piece and rebounds back. The rebound and impact velocities are measured at the 1mmpoint from the work piece in the following way:  the integrated permanent magnet will produce directly proportional voltage with the impact velocity. The Leeb hardness values are calculated by the following formula:

                    HL=1000×( Vb / Va )

In Which    HL: Leeb hardness values

              Vb : the voltage produced during the rebound of impact body

              Va : the voltage produced during the impact of impact body

The Leeb hardness values can be converted to other hardness scales directly, such as HV, HRC, HRB, HB and HS.

Specification

Measuring Method

Leeb Hardness method

Hardness Scale

HL, HB, HRB, HRC, HV, HS, σb

Measuring Range

HLD(200-960), HRC(19.8-68.5), HRB(13.5-100), HB(30-651), HV(80-976), HS(26.4-99.5), σb (375-2639)

Impact Device

D type impact device standard, optional C/G/DC/DL/D+15

Accuracy

±6HLD (HLD=800), Repeatability : less 6HLD (HLD=800)

Measuring Direction

360 degree by manual setting

Material

Steel& Cast Steel, Stainless Steel, GC iron, NC iron, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass.

Resolution

1HL,1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS

Display

High Contrast Segment Liquid Crystal Display (LED Backlight)

Data Memory

100 groups (each group include 1-7 testing result and 1 MEAN value)

Communication

USB port (Standard) and Blue tooth (Optional)

Printer

Thermal Printer with blue tooth (optional)

Power

2 AA batteries

Working Temperature

-10°C to +50°C

Size

153 × 76×37 (mm) (H×W×D)

Weight

280g include batteries

Standard

GB/T 17394-1998, ASTM A956

Standard Accessories

Optional Accessories

AJH360 Main Unit

Impact Device: D/C/G/DC/DL/D+15

D Type Impact Device

Standard Test Block

Standard Test Block

Blue tooth module & Thermal Printer

Rubber Sheath

Belt

Small Support Ring

Standard Support Ring

Cleaning Brush

Small Support Ring

2 AA Batteries

Special Support Ring

Data Software

Communication Cable

Operating Manual



Instrument Case
