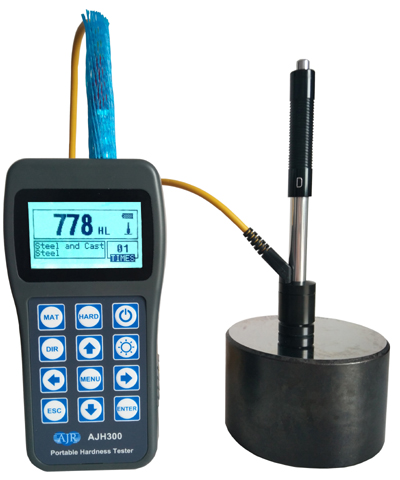

Portable Hardness Tester AJH300

Product Infomation
This portable hardness tester uses the dynamic Leeb rebound technique, has a wide measuring range and is suitable for most metals. Displays readings in hardness scales HRB, HRC, HV, HB, HS, HL.
  • Model:AJH300
  • Specifications:HLD(170-960),(19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV,(30~110)HS
  • Color:Grey
  • Brand:AJR
Details

Portable Hardness Tester AJH300 Model

Features:

l        Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.

l        Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

l        Large LCD screen, showing all functions and parameters. With EL background light.

l        Large capacity memory could store 600 groups information.

l        Datapro Software to connect with PC via USB port. Micro printer support

l        Software calibration function.

Technical Specifications:

l        Measuring range:

(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB

l        Measuring direction:360°(↓↖↗↘↙→←↑)

l        Hardness Scale:HL、HB、HRB、HRC、HRA、HV、HS

l        Display: LCD

l        Data memory:max. 600 groups(relative to impact times 32~1)

l        Working voltage:3V(2 AA size alkaline battery)

l        Continuous working period:about 100 hours(With backlight off)

l        Communication interface:USB

Main Application

l        Die cavity of molds

l        Bearings and other parts

l        Failure analysis of pressure vessel, steam generator and other equipment

l        Heavy work piece

l        The installed machinery and permanently assembled parts.

l        Testing surface of a small hollow space

l        Material identification in the warehouse of metallic materials

l        Rapid testing in large range and multi-measuring areas for large-scale work piece

Configuration:



No.

Item

Quantity

Remarks

Standard Configuration

1

AJH300 Main unit

1



2

D type impact device

1

With cable

3

Standard test block

1



4

Cleaning brush (I)

1



5

Small support ring

1



6

USB cable

1



7

DataPro software

1



8

Manual

1



9

Instrument package case

1



10

Warranty Card

1



11

Packing List

1



12

Calibration Certificate

1



Optional Configuration

13

Cleaning brush (II)

1

For G type impact device

14

Other type of impact devices and support rings



Refer to Table 3 and Table4 inthe appendix.

15

Micro Printer

1



16

Print cable

1
