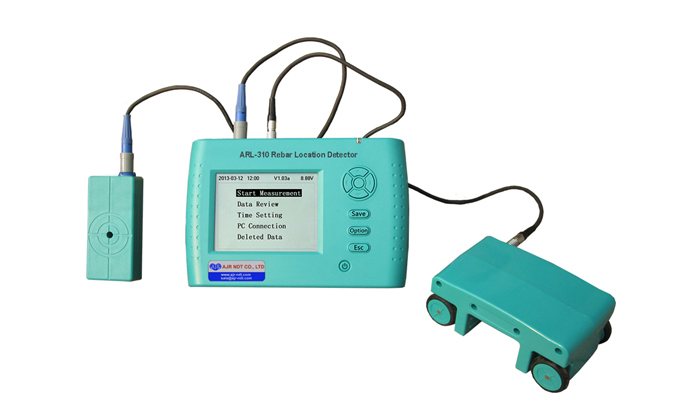

ARL310 Concrete Rebar Location Detector
Introduction
The ARL310 apparatus is mainly used for testing concrete structure’s quality; locating the steel bar’s position and Measuring the rebar’s protecting thickness and diameter. It also can locate metal material’s position involved in the nonmetal material, such as the cable, the plumbing pipe in the wall and the metal involved in pipelines and woodiness.
Features
ØTest depth could reach 180mm
ØSingle comprehensive probe make test more easy without replacing during test.
ØBack-lit screen can ensure the machine work under the insufficient light condition
ØMachine software can make user connect the PC. The test report could be printed automatically when connecting with computer
Work environment condition
ØNo strong alternating electromagnetic field
ØNo corrosive gas in the air.
ØAvoid larger vibration and impact
ØAvoid the LCD panel contact with sunlight directly
Application
ØTesting concrete cover thickness
ØTest concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.
ØEstimation bar diameter
ØDetection of Cable and Plumbing pipe
Technical Specification
Rebar Range |
||
Rebar diameter range(mm) |
Φ6 - 50 |
|
Maximum error of rebar diameter |
≤±1 |
|
Cover thickness measuring range |
||
The first measuring range (mm) |
6 - 90 |
|
The second measuring range (mm) |
7-180 |
|
The maximum error of cover thickness |
||
The first measuring range (mm) |
The second measuring range(mm) |
Error |
6 - 59 |
7 - 79 |
≤±1 |
60 - 69 |
80 - 119 |
≤±2 |
70 -90 |
120 - 180 |
≤±4 |
Environmental requirement |
||
Working temperature |
℃ -10~40℃ |
|
Relative humudity |
<90% |
|
Power source, |
6 PCS Alkaline Batteries |
|
Working Time |
>30 hours |
Standard Accessories
No. |
Item |
Qty. |
1 |
ARL-310 Main Unit |
1 |
2 |
Probe |
1 |
3 |
Probe Connection Cable |
1 |
4 |
USB Cable |
1 |
5 |
Data Software |
1 |
6 |
Carrying Case |
1 |
7 |
Operation Manual |
1 |
8 |
Packing List |
1 |
9 |
Guarantee Card |
1 |
10 |
Product Certificate |
1 |
Optional Accessories
No. |
Item |
Qty. |
1 |
Scan Car |
1 |
2 |
Car Connection Cable |
1 |
