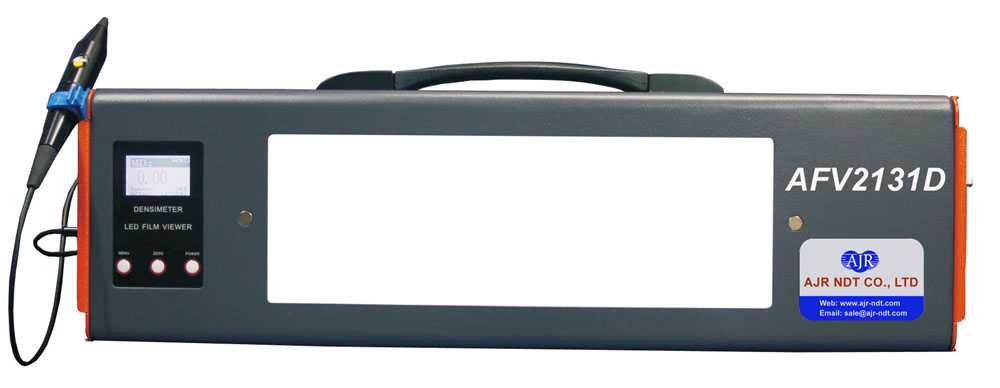

AFV2131D LED Industrial X-Ray Film Viewer Combine with Densitometer
Introduction
The high efficiency LED Industrial X-Ray Film Viewer AFV2131D combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. The film viewer AFV2131 meets GB/T19802-2005; EN25580:1992 and IS0 5580:1985 standard. Due to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.
Besides AFV2131 model machine function, AFV2131D add densitometer on left. The densitometer adopts the most innovative programmable optical frequency sensor (made in the USA TAOS sensor). High intensity LED film viewer with variable brightness is recommended to measure radiographic density of the film. Instrument's calibration can be performed by end-user. This black-and-white film densitometer is the most advanced, precise and reliable densitometer on the market. It is a robust, easy to use, separate probe type densitometer for measuring the transmission density of x-ray film. One AFV2131D equals one densitometer and one piece film viewer. And AFV2131D can be used in one-site mobile darkrooms, laboratories and offices.
Features
Film Viewer
l Design: Modern and Simple
l Easy to control: Optimized right-side panel control design
l Multi-channel precise brightness controller
l Magnetic film holder can optionally move
l High stability power supply
l Built-desktop stand and hanging hole
l Pure White LED Light
l Long time LED light life.
l Low power consumption
l Two viewing window

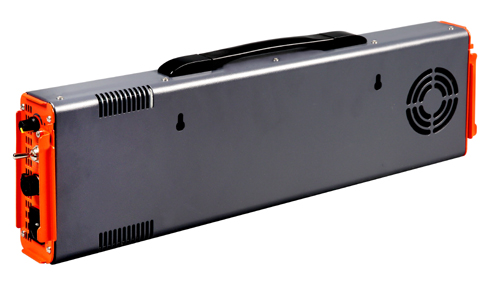

l Air cooling
Densitometer
l Separate probe type densitometer
l Easy to test
l 4 digit LCD
l User can adjust measured value of film density
l No warm up time

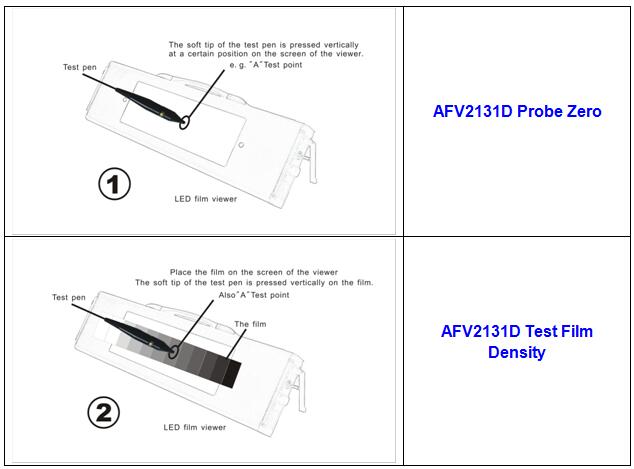

l Zero calibration with probe
l Probe temperature compensation
l User can look up previous 32 density measurements
l Battery volume indicator
l Smart power management
l Rechargeable lithium battery supply power
l Extra optional support can make probe touch film vertically and ensure the test more accurate
Main Specification
|
Film Viewer |
|
|
Max. Light Intensity |
0-100,000cd/㎡ adjustable |
|
Control Mode: |
Manual / foot-switch |
|
Dimmer Control |
0% to 100% continuous |
|
Film Density: |
> 4.0 density (More than 4.0 D) |
|
Uniform Viewing Area: |
98% full Screen |
|
Cooling Method: |
Air cooling |
|
Surface Temperature Rise: |
< 18° Continuous operation for 24 hours |
|
LED Light Life |
50,000 Hours |
|
Size of Viewing Window |
30cm×10cm (L×W) 11.8"×3.9"(L×W) |
|
Size of Window Light Mask |
22cm×8cm (L×W) 11.8"×3.9"(L×W) |
|
Power Requirement |
AC: 90~264VAC / 47~63Hz |
|
Power Consumption |
120W |
|
Dimension |
53m×15.5cm×6cm (L×W×H) 20.9"×6.1"×2.4" (L×W×H) |
|
Weight |
4kg / 8.8lbs |
|
Densitometer |
|
|
Measuring Range |
0.00-5.00 D |
|
Measurement Accuracy |
±0.02 D |
|
Resolution |
0.01 D |
|
Probe Temperature Compensation |
|
|
Calibration Scope |
Arbitrary value |
|
Visual Display |
4-bit LCD |
|
Optical Frequency Sensor |
USA TAOS sensor |
|
Optical Aperture |
3mm diameter |
|
Power Supply |
Built-in 2000mA lithium battery |
|
Power Interface |
MICRO USB interface; |
|
Power Adapter |
DC5V / 1000mA (100-240VAC) |
|
Dimension |
141 x 76 x 28 mm |
|
Weight |
222 g |
