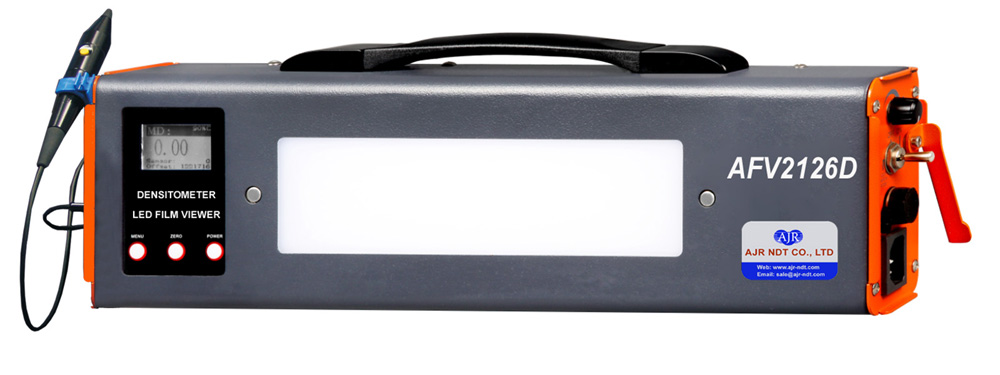

AFV2126D LED Industrial X-Ray Film Viewer with Densitometer

Product Infomation
The LED Industrial X-Ray Film Viewer AFV2126D combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. It is developed absolutely according to the Norm of GB/T19802-2005; EN25580:1992 and IS0 5580:1985 industrial radiographic illuminators minimum requirements. Due to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure. Besides AFV2126 model machine function, AFV2126D add densitometer on left. The densitometer adopts the most innovative programmable optical frequency sensor (made in the USA TAOS sensor). High intensity LED film viewer with variable brightness is recommended to measure radiographic density of the film. Instrument's calibration can be performed by end-user. This black-and-white film densitometer is the most advanced, precise and reliable densitometer on the market. It is a robust, easy to use, separate probe type densitometer for measuring the transmission density of x-ray film. One AFV2126D equals one densitometer and one piece film viewer. And AFV2126D can be used in one-site mobile darkrooms, laboratories and offices.
  • Model:AFV2126D
  • Specifications:0- 70000 cd/㎡ adjustable; Film Density < 4.0 density (Less than 4.0 D)
  • Color:Orange
  • Brand:AJR
Details

AFV2126 LED Industrial X-Ray Film Viewer

Introduction

The LED Industrial X-Ray Film Viewer AFV2126D combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. It is developed absolutely according to the Norm of GB/T19802-2005; EN25580:1992 and IS0 5580:1985 industrial radiographic illuminators minimum requirements. Due to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.

Besides AFV2126 model machine function, AFV2126D add densitometer on left. The densitometer adopts the most innovative programmable optical frequency sensor (made in the USA TAOS sensor). High intensity LED film viewer with variable brightness is recommended to measure radiographic density of the film. Instrument's calibration can be performed by end-user. This black-and-white film densitometer is the most advanced, precise and reliable densitometer on the market. It is a robust, easy to use, separate probe type densitometer for measuring the transmission density of x-ray film. One AFV2126D equals one densitometer and one piece film viewer. And AFV2126D can be used in one-site mobile darkrooms, laboratories and offices.

Features:

Film Viewer

l Design: Modern and Simple

l Easy to control: Optimized right-side panel control design

l Multi-channel precise brightness controller

l Magnetic film holder can optionally move

l High stability power supply

l Built-desktop stand and hanging hole

l Pure White LED Light

l Long time LED light life.

l Low power consumption

l Air cooling

Densitometer

l Separate probe type densitometer

l Easy to test

l 4 digit LCD

l User can adjust measured value of film density

l No warm up time

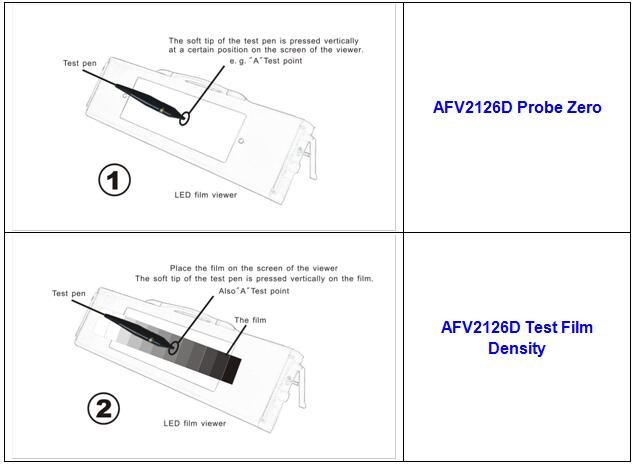

l Zero calibration with probe

l Probe temperature compensation

l User can look up previous 32 density measurements

l Battery volume indicator

l Smart power management

l Rechargeable lithium battery supply power

l Extra optional support can make probe touch film vertically and ensure the test more accurate

Main Specification

Film Viewer

Max. Light Intensity

0- 70000 cd/ adjustable

Control Mode:

Manual / foot-switch

Dimmer Control

0% to 100% continuous

Film Density:

< 4.0 density (Less than 4.0 D)

Uniform Viewing Area:

98% full Screen

Cooling Method:

Air cooling

Surface Temperature Rise:

< 18°

LED Light Life

50,000 Hours

Size of Viewing Window

22cm×6cm; 8.7"×2.4"(L×W)

Size of Window Light Mask

20cm×4.5cm; 7.9"×1.8"(L×W)

Power Requirement

AC: 90~264VAC / 47~63Hz

Power Consumption

48W

Dimension

43cm×12.5cm×6cm (L×W×H)

16.9"×4.9"×2.4" (L×W×H)

Weight

2.5kg / 5.5lbs

Densitometer

Measuring Range

0.00-5.00 D

Measurement Accuracy

±0.02 D

Resolution

0.01 D

Probe Temperature Compensation

Calibration Scope

Arbitrary value

Visual Display

 4-bit LCD

Optical Frequency Sensor

USA TAOS sensor

Optical Aperture

3mm diameter

Power Supply

Built-in 2000mA lithium battery

Power Interface

MICRO USB interface;

Power Adapter

DC5V / 1000mA (100-240VAC)

Dimension

141 x 76 x 28 mm

Weight

222 g
