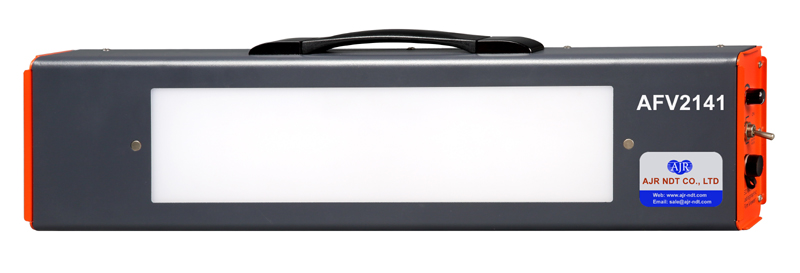

AFV2141Industrial LED X Ray Film Viewer
Introduction
The high efficiency Industrial LED X Ray Film Viewer AFV2141 combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. The film viewer AFV2141 meets GB/T19802-2005; EN25580:1992 and IS0 5580:1985 standard. Thanks to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.
Features
lDesign: Modern and Simple

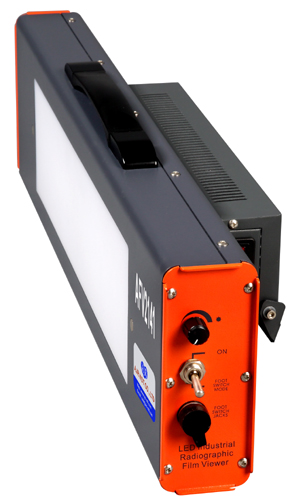

lEasy to control: Optimized right-side panel control design
lMulti-channel precise brightness controller
lMagnetic film holder can optionally move
lHigh stability power supply
lBuilt-desktop stand and hanging hole
lPure White LED Light
lLong time LED light life.
lLow power consumption
lAir cooling
Main Specification
Max. Light Intensity
0-100,000cd/㎡ adjustable
Control Mode:
Manual / foot-switch
Dimmer Control
0% to 100% continuous
Film Density:
> 4.0 density (More than 4.0 D)
Uniform Viewing Area:
98% full Screen
Cooling Method:
Air cooling
Surface Temperature Rise:
< 18°
Continuous operation for 24 hours
LED Light Life
50,000 Hours
Size of Viewing Window
40cm×10cm (L×W)
15.75"×3.9"(L×W)
Size of Window Light Mask
24cm×10cm (L×W)
24cm×6cm (L×W)
40cm×6cm (L×W)
Power Requirement
AC: 90~264VAC / 47~63Hz
Power Consumption
200W
Dimension
61cm×15.5cm×6cm +5cm (L×W×H)
Weight
5.8kg
