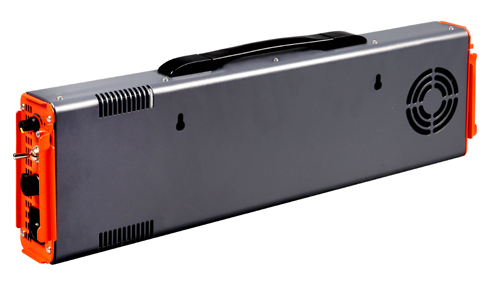

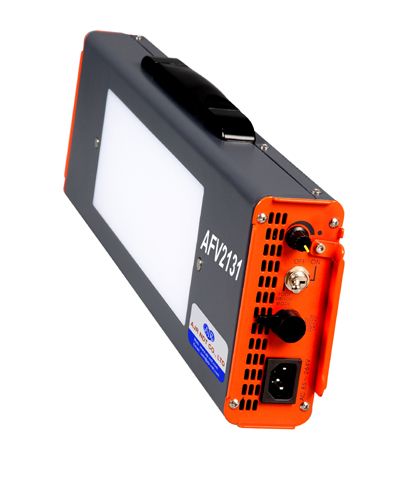

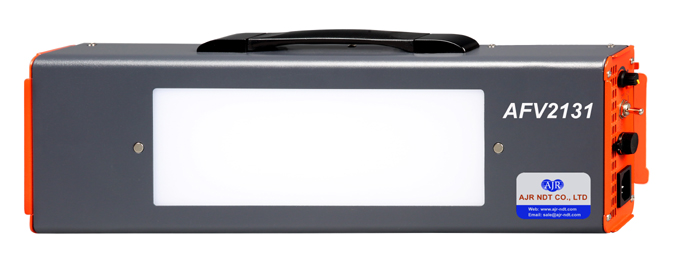

AFV2131 LED Industrial X-Ray Film Viewer
Introduction
The high efficiency LED Industrial X-Ray Film Viewer AFV2131 combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. The film viewer AFV2131 meets GB/T19802-2005; EN25580:1992 and IS0 5580:1985 standard. Thanks to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.
Features
lDesign: Modern and Simple
lEasy to control: Optimized right-side panel control design
lMulti-channel precise brightness controller
lMagnetic film holder can optionally move
lHigh stability power supply
lBuilt-desktop stand and hanging hole
lPure White LED Light
lLong time LED light life.
lLow power consumption
lAir cooling
Main Specification
|
Max. Light Intensity |
0-100,000cd/㎡ adjustable |
|
Control Mode: |
Manual / foot-switch |
|
Dimmer Control |
0% to 100% continuous |
|
Film Density: |
> 4.0 density (More than 4.0 D) |
|
Uniform Viewing Area: |
98% full Screen |
|
Cooling Method: |
Air cooling |
|
Surface Temperature Rise: |
< 18° Continuous operation for 24 hours |
|
LED Light Life |
50,000 Hours |
|
Size of Viewing Window |
30cm×10cm (L×W) 11.8"×3.9"(L×W) |
|
Size of Window Light Mask |
22cm×8cm (L×W) 11.8"×3.9"(L×W) |
|
Power Requirement |
AC: 90~264VAC / 47~63Hz |
|
Power Consumption |
120W |
|
Dimension |
53m×15.5cm×6cm (L×W×H) 20.9"×6.1"×2.4" (L×W×H) |
|
Weight |
4kg / 8.8lbs |
