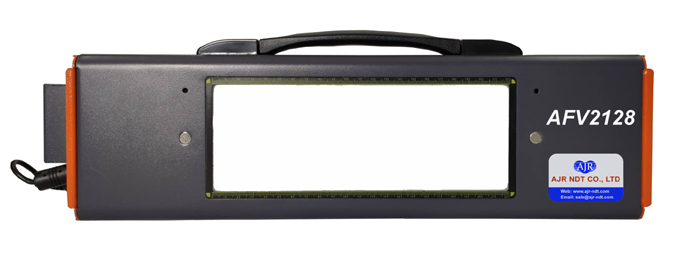

AFV2128 LED Industrial X-Ray Film Viewer
Introduction
The high efficiency LED Industrial X-Ray Film Viewer AFV2128 combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. The film viewer AFV2128 meets GB/T19802-2005; EN25580:1992 and IS0 5580:1985 standard. Thanks to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.

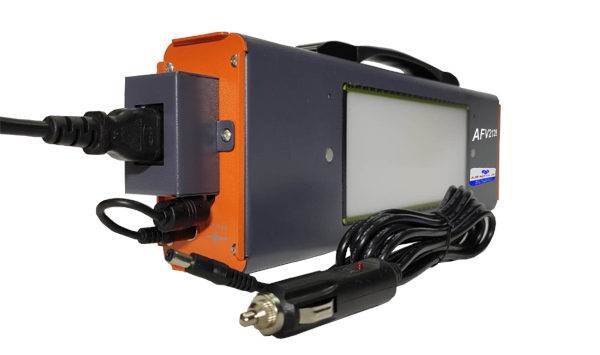

Compare with AFV2126 model, the AFV2128 is dual power supply design. User can use machine with both AC and DC power. What’s more, the AFV2128 can be recharged in car with supplied car charger. AFV2128 LED film viewer is an ideal tool for field and indoors. AFV2128 is crystallization of many innovative technologies.
Features
lDesign: Modern and Simple

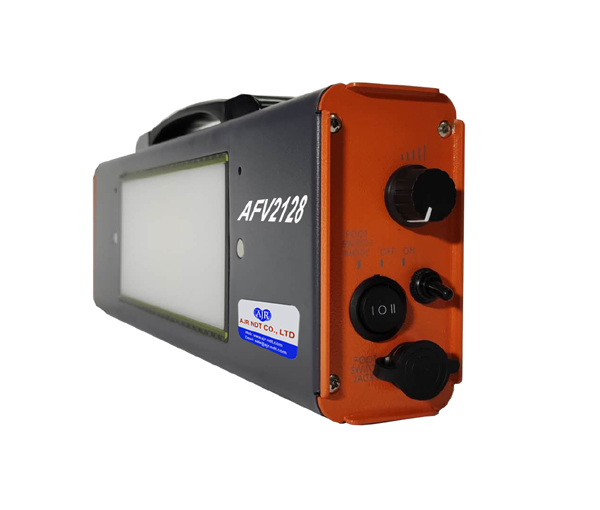

lEasy to control: Optimized right-side panel control design
lMulti-channel precise brightness controller
lMagnetic film holder can optionally move
lHigh stability power supply

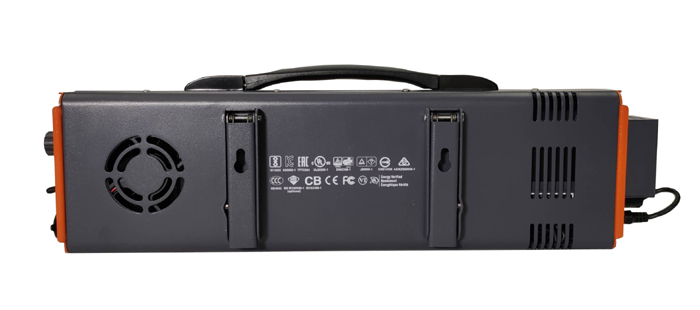

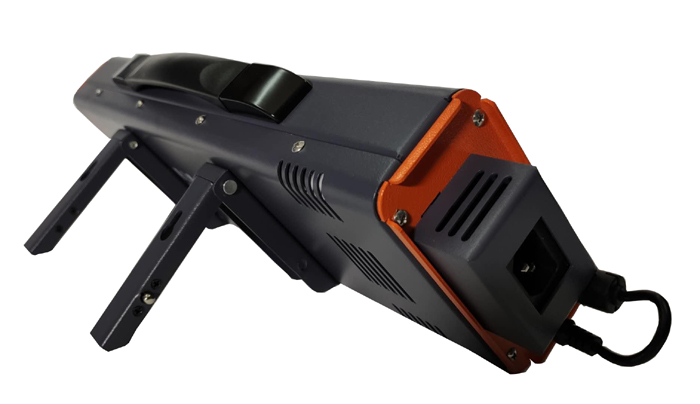

lBuilt-desktop stand and hanging hole
lPure White LED Light
lLong time LED light life.
lLow power consumption
lAir cooling
Main Specification
|
Max. Light Intensity |
0-100.000 Cd/㎡ adjustable; 0 -300,000 Cd/㎡adjustable |
|
Control Mode: |
Manual / foot-switch |
|
Dimmer Control |
0% to 100% continuous |
|
Film Density: |
> 4.5 density (More than 4.5 D) |
|
Uniform Viewing Area: |
98% full Screen |
|
Cooling Method: |
Air cooling |
|
Surface Temperature Rise: |
< 18° Continuous operation for 24 hours |
|
LED Light Life |
50,000 Hours |
|
Size of Viewing Window |
220mm*80mm (L×W) 80mm*80mm (L×W) |
|
Size of Window Light Mask |
200 mm*40 mm (L×W) |
|
Power Requirement |
AC: 90~264VAC / 47~63Hz DC: 12V 5A |
|
Power Consumption |
60W |
|
Dimension |
425mm x 60mm x 130 mm (L×W×H) |
|
Weight |
2.5kg / 5.5lbs |
