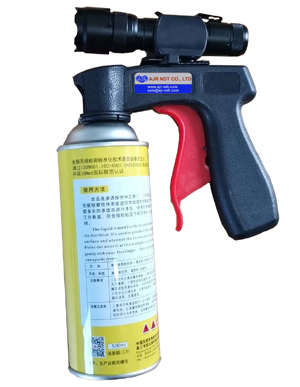

AJR UV LED Torch with Trigger
UV-T Model
Main Test Method
l Fluorescence Penetrant Testing
l Fluorescence Magnetic Particle Flaw Detection
l Fluorescence Leak Detection
Application
l Oil Stain, Blot Testing
l Special Gas, Oil and Gas Pipeline Testing
l Fluorescence Reflection Detection for Special Materials
l Criminal Investigation and Legal Medical Expert Survey
l Paper Money Authentication, Jewel Appreciation
l Agriculture, Foodstuff, Medical Treatment and other relevant industries.
Technical Parameters
|
Model |
AJR UV-T |
|
Type |
Handheld |
|
Uv-flux temperature 25℃ 380mm calibration |
>6000 uW/ cm², Max can be 18000 uW/cm² |
|
FLUX error |
0-40℃ ±10% |
|
Power Requirements |
AC:100 240V 50/60Hz |
|
Power |
UV LED-3W |
|
The wavelength |
Room temperature 25℃ 365nm±3nm(UVA) |
|
Size |
30mmX150mm |
|
Charging time |
2-3hours |
|
Battery life |
UV LED about 6-8Hours |
|
Battery voltage |
3.7V |
|
Weight |
130g |
Battery specifications
|
Material |
Rechargeable lithium battery |
|
Diameter |
18.2mm |
|
Height |
65.0(mm) |
|
Capacity |
2000MAH |
|
Voltage |
Standard voltage 3.7v |
Standard accessories:
|
NO. |
Item |
Qty. |
|
1 |
Trigger |
1 |
|
2 |
UV LED Torch |
1 |
|
3 |
Calibration Certificate |
1 |
|
4 |
Specification File |
1 |
|
5 |
Guarantee Card |
1 |
|
6 |
Packing List |
1 |
