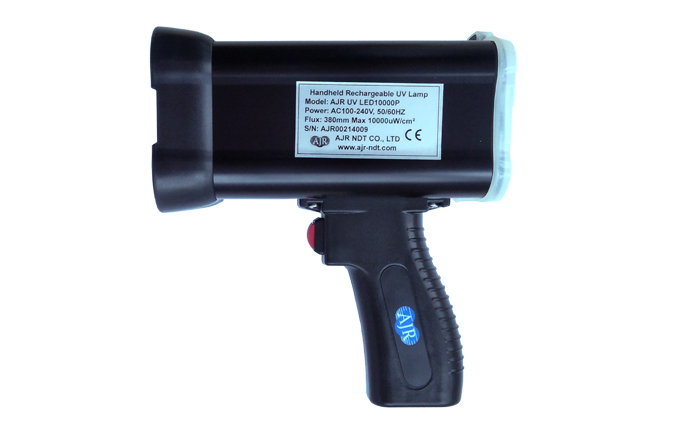

AJR UV-LED 4000P / 6000P / 8000P / 10000P
Hand Held Rechargeable UV LED Lamp With Pure UV Light
Characteristics
Power energy - energy saving of only 12VA
The average service life of the light source 30000h!
The content of UV-B is 0.
3-4 hours of battery life.
Quick replacement battery.
Including the weight of the battery less than 500 g.
External without wiring.
Continuous working outside surface temperature＜5K(5℃)
|
Outline dimension drawing |
Unit: mm
|
Parameters |
|
|
Project |
Parameter / way |
|
Form |
Handheld type |
|
UV(Light)-FLUX Room temperature 25℃ 380mm calibration |
UV-LED4000P:＞4000uW/cm² UV-LED6000P:＞6000uW/cm² ;
UV-LED8000P:＞8000uW/cm² ; UV-LED10000P:＞10000uW/cm²; |
|
The effective coverage area 380mm calibration |
Diameter of about 300mm |
|
Wavelength |
Room temperature 25℃ 365nm±3nm（UVA） |
|
FLUX Error |
0-40℃ ±10％ |
|
The light distribution characteristic |
The light distribution center |
|
Power source |
AC100-240V 50/60Hz |
|
Power |
UV LED-12VA |
|
Overall dimensions |
137mm（W）*72mm（D）*176mm（H） |
|
Weight |
498g |
|
The charging time |
2-3H |
|
Battery capacity |
2200mA/H 12.6V |
|
Battery life (total time) |
UV LED 2-3H |
The above parameters is typical value. Parameters are subject to change without prior notice
