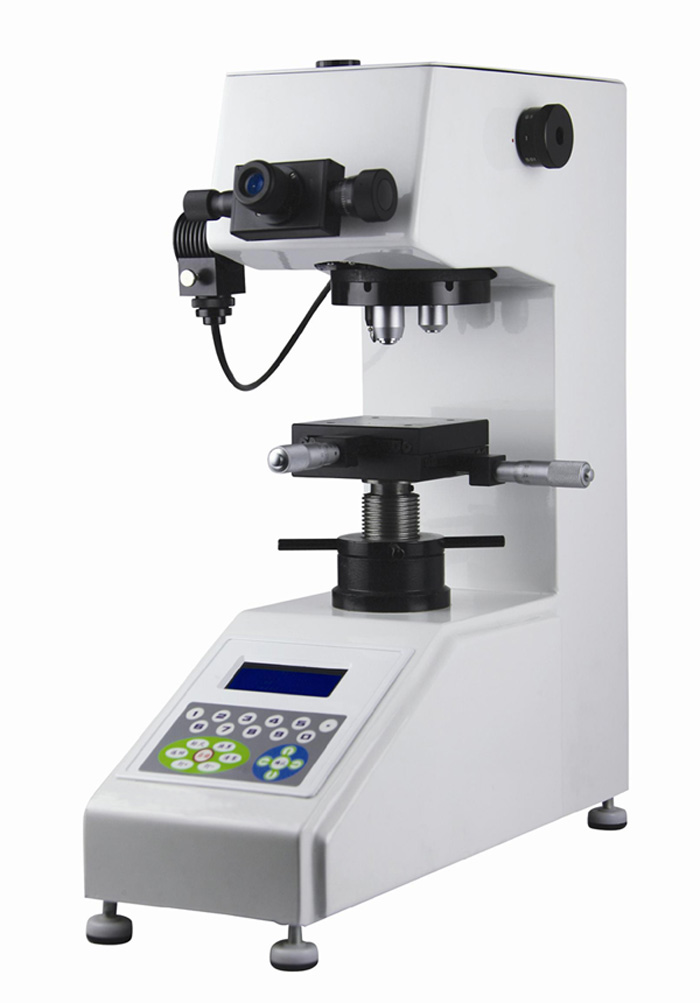

AJR HV-5, HV-10, HV-30, HV-50 Micro Vickers Hardness Tester

Product Infomation
AJR HV-5, HV-10, HV-30, HV-50 Micro Vickers Hardness Tester are basic model Vickers hardness tester with LCD screen. With control keys, user can choose HV or HK hardness scales, testing force and duration time. Light brightness can be adjusted without steps. With measuring microscope, it may test out the length values of diagonals D1 and D2, then press the keys to input the length values, and the hardness values will be displayed on the LCD screen. The operation is very easy for a new user.
  • Model:AJR HV-5, HV-10, HV-30, HV-50
  • Specifications:8HV0.3~2900HV10
  • Color:Gray
  • Brand:AJR
Details

AJR HV-5 HV-10 HV-30 HV-50

Micro Vickers Hardness Tester

Introduction

AJR HV-5, HV-10, HV-30, HV-50 Micro Vickers Hardness Tester are basic model Vickers hardness tester with LCD screen. With control keys, user can choose HV or HK hardness scales, testing force and duration time. Light brightness can be adjusted without steps. With measuring microscope, it may test out the length values of diagonals D1 and D2, then press the keys to input the length values, and the hardness values will be displayed on the LCD screen. The operation is very easy for a new user.

Usage Range:

Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.

Technical Specification

           TYPE

PROJECT

HV-5

HV-10

HV-30

HV-50

 Testing Force

2.94N(0.3Kgf),4.9N(0.5Kgf),

9.80N(1Kgf), 19.6N(2.0Kgf),

29.4N(3.0Kgf),49.0N(5.0Kgf)

2.94N(0.3Kgf), 4.9N(0.5Kgf),

9.80N(1Kgf), 29.4N(3Kgf),

49.0N(5Kgf), 98.0N(10Kgf)

9.8N(1.0Kgf), 29.4N(3Kgf),

49.0N(5.0Kgf),98N(10Kgf), 196N(20Kgf), 294N(30Kgf)

9.8N(1.0Kgf), 49.0N(5.0Kgf),

98N(10Kgf), 196N(20Kgf),

294N(30Kgf), 490N(50Kgf)

Min Measuring Unit

0.5μm

1μm

Test Range

8HV0.3~2900HV10

Magnification of Microscope

100X(For Observation)

200X(For Measurement)

Duration Time

060s

Data Output

Inside Printer and RS232 Interface

Loading Control

Automatically (load, keep, unload)

Net Weight

40kg

Max Height of Specimen

160mm

Max Depth of Specimen

135mm

Power Supply

AC220V±5%50~60Hz

Carried Standard

GB/T4340(1.2) Chinese Standard,  JJG335-91 Inspection Rule

Standard Accessories:

No.

Item

Qty.

1

AJR HV-Series Main Machine

1

2

Weight

3

3

Vickers Indenter

1

4

Vickers Hardness Block

2

5

V shaped Testing Table

1

6

Circular Testing Table

1

7

Large Testing Table

1

8

Fuse 2A

2

9

10X Microscope

1

10

Power Cable

1

11

Plastic Protection Cover

1

12

English Operation Manual

1

13

Printer Manual

1

14

Product Certificate

1
