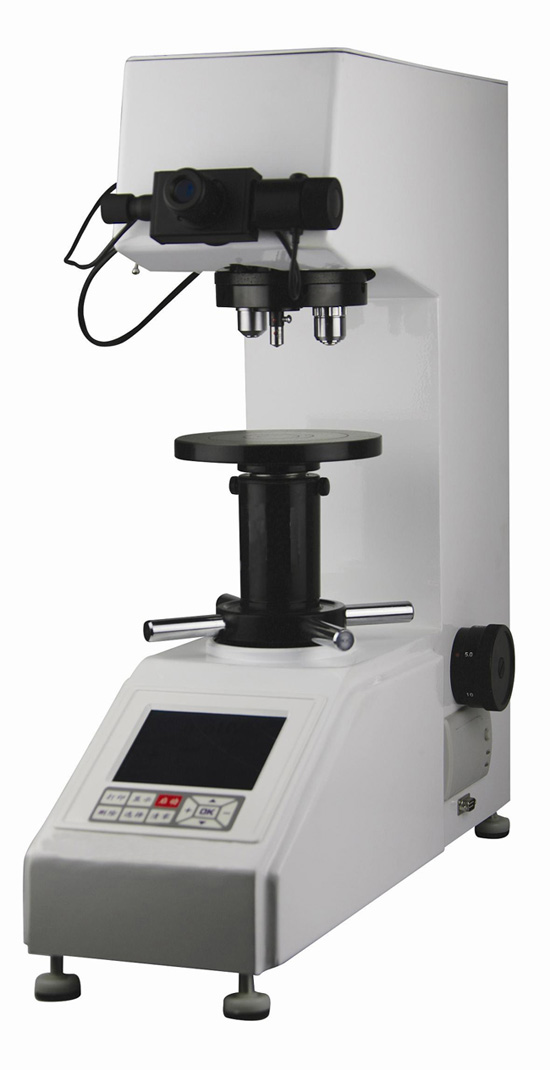

AJR HVS-5 HVS-10 HVS-30 HVS-50
Digital Micro Vickers Hardness Tester
Introduction
AJR HVS-5 HVS-10 HVS-30 HVS-50 Digital Micro Vickers Hardness Tester adopts large LCD screen to display test result. With menu key pad on the machine, it can help user choose hardness scales of HV or HK and store testing results and output data automatically or print the result with internal printer. The menu pad also can converse the hardness value among hardness scales. The RS232 interface can connect computer with this machine. This machine is a high level digital machine with software. User can correct the test error by computer software. This correction can make test result more accurate and meet requirement.
Usage Range:
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.
Technical Specification
TYPE
PROJECT
HVS-5
HVS-10
HVS-30
HVS-50
Testing Force
2.94N(0.3Kgf),
4.9N(0.5Kgf),
9.80N(1Kgf),
19.6N(2.0Kgf),
29.4N(3.0Kgf),
49.0N(5.0Kgf)
2.94N(0.3Kgf),
4.9N(0.5Kgf),
9.80N(1Kgf),
29.4N(3Kgf),
49.0N(5Kgf),
98.0N(10Kgf)
9.8N(1.0Kgf),
29.4N(3Kgf),
49.0N(5.0Kgf),
98N(10Kgf),
196N(20Kgf), 294N(30Kgf)
9.8N(1.0Kgf),
49.0N(5.0Kgf),
98N(10Kgf),
196N(20Kgf),
294N(30Kgf),
490N(50Kgf)
Min Measuring Unit
0.031μm
0.031μm
0.125μm
0.125μm
Test Range
8HV0.3~2900HV10
Magnification of Microscope
100X(For
Observation)
200X(For
Measurement)
Duration Time
0~60s
Data Output
Inside
Printer and RS232 Interface
Loading Control
Automatically
(load, keep, unload)
Net Weight
40kg
Max Height of Specimen
160mm
Max Depth of Specimen
135mm
Power Supply
AC220V±5%,50~60Hz
Carried Standard
GB/T4340(1.2)
Chinese Standard
Standard Accessories:
No.
Item
Qty.
1
AJR HVS-Series Main Machine
1
2
Weight
3
3
Vickers
Indenter
1
4
Vickers Hardness Block
2
5
V shaped
Testing Table
1
6
Circular Testing
Table
1
7
Large Testing
Table
1
8
Fuse 2A
2
9
10X
Microscope
1
10
Power Cable
1
11
Plastic
Protection Cover
1
12
English
Operation Manual
1
13
Printer
Manual
1
14
Product Certificate
1
