AEC660 Eddy Current Electrical Conductivity Tester

Product Infomation
AEC660 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate、quality control、material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.
  • Model:AEC660
  • Specifications:Frequency:60KHz; Measuring Range:6.9%IACS—110%IACS(4.0 MS/m -64MS/m)
  • Color:White
  • Brand:AJR NDT
Details

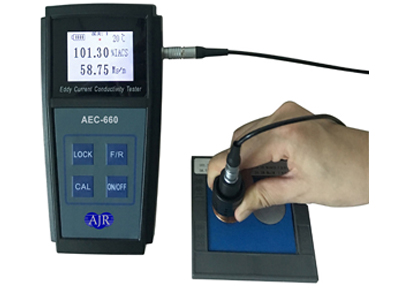

AJR NDT AEC660 Digital Portable Eddy Current Electrical Conductivity Meter

Introduction

AEC660 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate、quality control、material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.

Features

★The meter uses 60 KHz (aviation industry standard) to inspirit.

★The testing data can be read in two kinds of unit: %IACS and MS/m.

★Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.

★It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.

★The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.

★It can hold measurement data.

Applications

★ Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.

★ In the aerospace and automotive industries,monitor the process of heat treatment, the strength and hardness of aluminum alloy.

★ Test the conductivity aluminum when it has not been oxidized.

★ Test the purity grade of materials.

★ Test materials resistivity.

★ Material Thermal Performance analysis.

Technical parameters

Item

Specification

Measurement technology

Eddy current

Operating frequency

60KHz

Display screen

Monochrome

L*B*H

180*75*30 mm

Instrument case

Anti-intense impactwater-proofing polyester.

Weight

290g

Power supply

High capacity, high performance lithium polymer battery

 Measuring range

0.5%IACS—110%IACS (0.29 MS/m -64MS/m)

Distinguishing rate

0.1% IACS

Measuring accuracy

0°C to 50°C

0~23%IACS   ±0.1%IACS

23%IACS~110%IACS  ±0.3%IACS

Temperature compensation

Automatic compensation to the value of 20 .

Normal work environment

Relative humidity

095%

Operating temperature

050

Language

English

Fitting

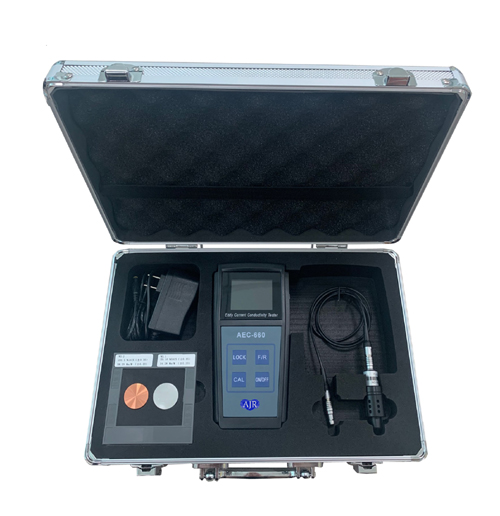

Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter.

Probe

Diameter:12.7mm

Applicable to minimum measuring area diameter at 60KHz is10mm.

Note: The conductivity measurements automatically rectified to the value at 20℃.
