AEC670 Digital Portable Eddy Current Electrical Conductivity Meter

Product Infomation
AEC670 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate、quality control、material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.
  • Model:AEC670
  • Specifications:Frequency:60KHz, 120KHz; Measuring Range:6.9%IACS—110%IACS(4.0 MS/m -64MS/m)
  • Color:Red
  • Brand:AJR NDT
Details

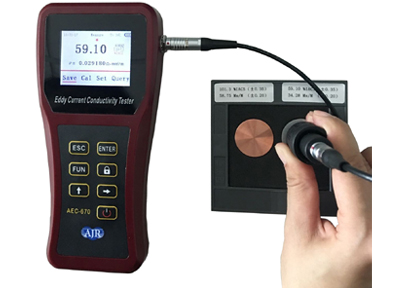

AJR NDT AEC670 Digital Portable Eddy Current Electrical Conductivity Meter

Introduction

AEC670 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate、quality control、material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.

Features

★The meter uses 60 KHz (aviation industry standard) to inspirit, and the testing data can be read in two kinds of unit: %IACS or MS/m.

★Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.

★Two kinds of operate languages satisfy different national demand.

★It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.

★The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.

★It can store 1000 measurement data.

Applications

★ Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.

★ In the aerospace and automotive industries,monitor the process of heat treatment, the strength and hardness of aluminum alloy.

★ Test the conductivity aluminum when it has not been oxidized.

★ Test the purity grade of materials.

★ Test materials resistivity.

★ Material Thermal Performance analysis.

Technical parameters

Item

Specification

Measurement technology

Eddy current

Operating frequency

60KHz120KHz

Display screen

240X320 pixels TFT-LCD4 kinds of background color

L*B*H

180*80*30 mm

Instrument case

Anti-intense impactwater-proofing polyester.

Weight

260g

Power supply

High capacity, high performance lithium polymer battery

 Measuring range

Conductivity

6.9%IACS—110%IACS(4.0 MS/m -64MS/m)

Resistivity

Correspond the Conductivity

Distinguishing rate

0.01% IACS

0.000001Ω·(mm2/m

Measuring accuracy

0°C to 50°C

0~23%IACS   ±0.1%IACS

23%IACS~110%IACS  ±0.3%IACS

Temperature compensation

Automatic compensation to the value of 20 .

Normal work environment

Relative humidity

095%

Operating temperature

050

Language

EnglishChinese

Fitting

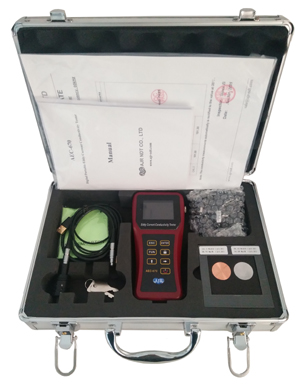

Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter.

Probe

Diameter:12.7mm

Applicable to minimum measuring area diameter at 60KHz is10mm.

Diameter: 8mm

Applicable to minimum measuring area diameter at 120KHz is 7mm.

Note: The conductivity measurements automatically rectified to the value at 20℃.
