Porosity Holiday Detector AHD820
Introduction
AHD820 holiday detector is a high-voltage special detector that is used to detect the quality of metal anti-corrosion coating. This detector can detect different thickness of coatings, such as glass lining, glass reinforced plastic, epoxy coal tar, rubber lining and so on. The detector will emit bright sparks and with sound alarm when something is wrong with the coating, such as the emergence of pinhole, air bubbles, fissures and cracks. As powered by Ni-MH battery, and with small size and light in weight, it is especially suitable for field operation. The detector is the essential tool used for detecting the quality of metal anti-corrosion coating and can be used widely in many industries including chemical, petroleum, rubber and ceramic, due to its sophisticated design and stable & reliable performances.
Specifications
|
Model |
AHD-820 |
|
Measuring Range |
0.05mm~10mm |
|
Output Voltage |
600V~30000V Stepless and adjustable continually |
|
Display |
3 Digits LCD |
|
Battery |
12V / 2800mA |
|
Power Consumption |
About 5W |
|
Screen |
Auto Backlight |
|
Power on/off |
Instantaneous power on/off |
|
Dimension |
220×130×88 mm |
|
Artificial Intelligence |
Alarm design both on machine and earphone |

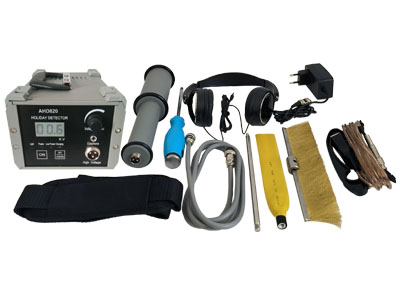

Standard Accessories
|
N0. |
Item |
Qty. |
|
1 |
AHD-820 Main Machine |
1 |
|
2 |
High Voltage Probe |
1 |
|
3 |
Detective Brush: Flat and Fan |
2 |
|
4 |
Connection Rod |
1 |
|
5 |
Earphone |
1 |
|
6 |
Haversack |
1 |
|
7 |
Fuse |
2 |
|
8 |
Charger |
1 |
|
9 |
Earthing Equipment |
1 |
|
10 |
Manual Instruction |
1 |
|
11 |
Warranty Certificate |
1 |
|
12 |
Carrying Case |
1 |
