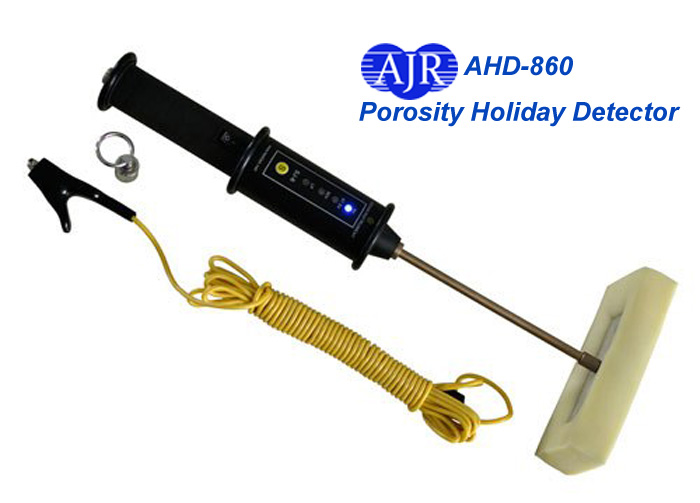

AHD-860 Porosity Holiday Detector / Wet Sponge Pinhole Leak Detector
Introduction
AHD-860 porosity holiday detector is a multi-voltage wet sponge pinhole leak detector. The machine use wet sponge testing technology to meet the new standard of wet sponge leak detector: high-quality, low-voltage leak. AHD-860 mainly measure the conductive substrate less than 500 micron pinhole insulating coating, slit, damage and other defects.
Technical Parameters
|
Item |
Specification |
|
Model |
AHD-860 |
|
Measuring Range |
9V ——300µm |
|
67.5V—500µm |
|
|
90V——500µm |
|
|
Sensitivity |
9V——90KΩ+5% |
|
67.5V—125KΩ+5% |
|
|
90V——400KΩ+5% |
|
|
Accuracy of voltage |
+5% |
|
Battery |
Li-pol rechargeable battery 11.1V/1100mA |
|
Power Consumption |
≤0.5W |
|
Voltage indication |
LED indication for each voltage |
|
Battery Charging |
12VDC charger |
|
Detecting rod length |
195mm |
|
Earth wire length |
4m |
|
Main Unit Weight |
500 g |
|
Main Unit Size |
290×53×53mm |
|
Sponge size |
170×70×30mm |
Standard Accessories:
|
No. |
Items |
Qty. |
|
1 |
AHD-860 Main Unit |
1 |
|
2 |
Probe Rod |
1 |
|
3 |
Sponge Probe |
1 |
|
4 |
Ground Wire |
1 |
|
5 |
Charger |
1 |
|
6 |
Carrying Case |
1 |
|
7 |
Operation Manual |
1 |
|
8 |
Guarantee Card |
1 |
|
9 |
Product Certificate |
1 |
