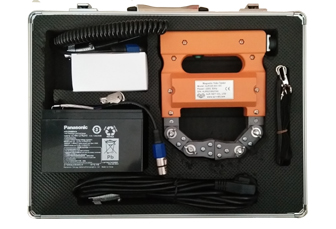

AJE220 AC / DC Magnetic Yoke Detector

Product Infomation
AJE-220AC/DC Magnetic Yoke Flaw Detector is portable type magnetic flaw detection equipment. AJE-220AC/DC use Yoke to magnetize Ferromagnetic material work piece. This model can magnetize every parts. It can be used in many industry like oil field, ship building, combustion motor parts, coal mine, machinery, standard parts, oil pump, aerospace parts, car parts, bridge building, chemical industry, pressure container and rail industry and so on. This model can measure the surface flaw and welding joint on irregular shape parts like chain bar, crank shaft, bearings, bolt, spring, forging piece, valve.
  • Model:AJE-220AC/DC
  • Specifications:12V, 220V
  • Color:Yellow
  • Brand:AJR
Details

Magnetic Yoke Flaw Detector AJE-220 AC/DC

I. Introduction

AJE-220AC/DC Magnetic Yoke Flaw Detector is portable type magnetic flaw detection equipment. AJE-220AC/DC use Yoke to magnetize Ferromagnetic material work piece. This model can magnetize every parts. It can be used in many industry like oil field, ship building, combustion motor parts, coal mine, machinery, standard parts, oil pump, aerospace parts, car parts, bridge building, chemical industry, pressure container and rail industry and so on. This model can measure the surface flaw and welding joint on irregular shape parts like chain bar, crank shaft, bearings, bolt, spring, forging piece, valve.

AJE-220 series include AC and AC/DC two types. DC type is a rechargeable battery. This type is suitable for the no power supply project site. This battery can be used for more than 6 hours once recharged. AC type use 220V power directly. The operation is easy and the machine is portable. Then it is widely used.

II. Specification

   Model

Type

AJE-220

AC/DC

Power

~220V50Hz

                 –12V

Recharging Power

220V 50Hz

Battery

MF12—7.2AH

Working Current

AC1.4A

DC1.7A

Recharging Time

8~15h

Battery Working Time

More than 6h

Working  Interval

60 seconds ON, 60 seconds OFF

Polar Distance

50~200mm

Lifting

A C

>5.5kg

D C

>22kg

Weight

Probe

3.1kg

Battery Bag

2.9kg

Dimension()

Probe

208×52×146

Battery

160×70×100

Charger

75×50×40
