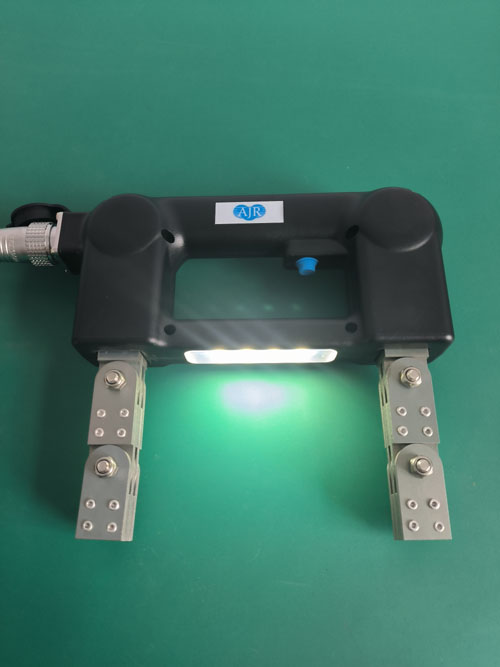

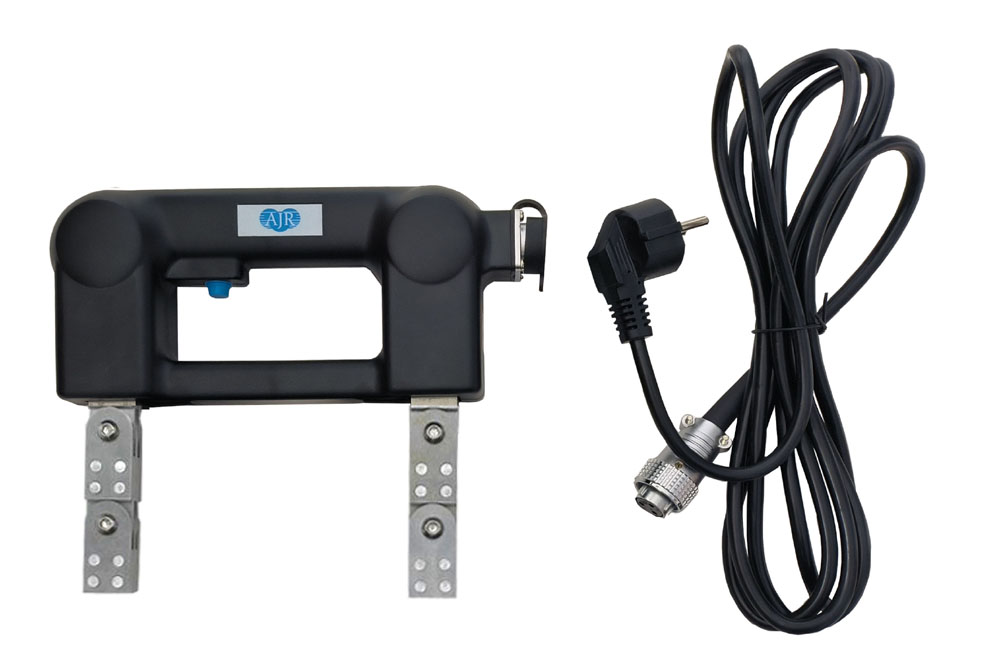

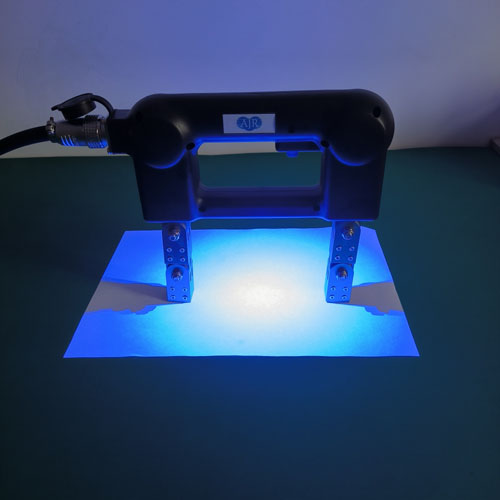

AJE220B AC Magnetic Yoke Flaw Detector

Product Infomation
With the characteristics of compact structure, reasonable layout, compact size, light weight and easy to carry, it is applicable for magnetic powder inspection of surface and near surface defects for various steel structures, boilers, pressure vessels, pressure pipes and welding structures in electric power, metallurgy, petrochemical, machinery and other industries. It can be directly plugged into AC, as well as be equipped with AC magnetized power supply (AC battery pack) and DC magnetized power supply (DC battery pack), which is of high efficiency and compactness. Besides, it is especially suitable for inspection of hull welds, high-altitude steel structure welds and internal operation of pressure vessels. It meets the requirements of JB/ T7411-2012 Technical conditions for electromagnetic yoke flaw detector. Standard Practice for Magnetic Particle Testing——ASTM E1444-05
  • Model:AJE220B AC
  • Specifications:220V
  • Color:Black
  • Brand:AJR
Details

AJE220B AC Magnetic Yoke Flaw Detector

I. Introduction

With the characteristics of compact structure, reasonable layout, compact size, light weight and easy to carry, it is applicable for magnetic powder inspection of surface and near surface defects for various steel structures, boilers, pressure vessels, pressure pipes and welding structures in electric power, metallurgy, petrochemical, machinery and other industries. It can be directly plugged into AC, as well as be equipped with AC magnetized power supply (AC battery pack) and DC magnetized power supply (DC battery pack), which is of high efficiency and compactness. Besides, it is especially suitable for inspection of hull welds, high-altitude steel structure welds and internal operation of pressure vessels.

It meets the requirements of JB/ T7411-2012 Technical conditions for electromagnetic yoke flaw detector.

Standard Practice for Magnetic Particle Testing——ASTM E1444-05

Product Characteristics

Compact size and light weight.

One-piece molding with comfortable feel.

Single-phase AC power supply

II. Specification

      Model

Category

AJE220B AC

Power Supply

AC220V 50Hz

Work Temperature

-10+40

Work Temperature Rise

<18

Relative Humidity

No condensing <80%

Sensitivity

A1 Standard test piece 15/50 clearly displayed

AC Working Current

AC 2.2A

Temporary Load Rate

50%

Magnetic Pole Pitch

0~220mm

Lifting Power

≥7.1kg (69N) (Direct-plug 220V AC)

Yoke Weight

2.3kg
