Introduction

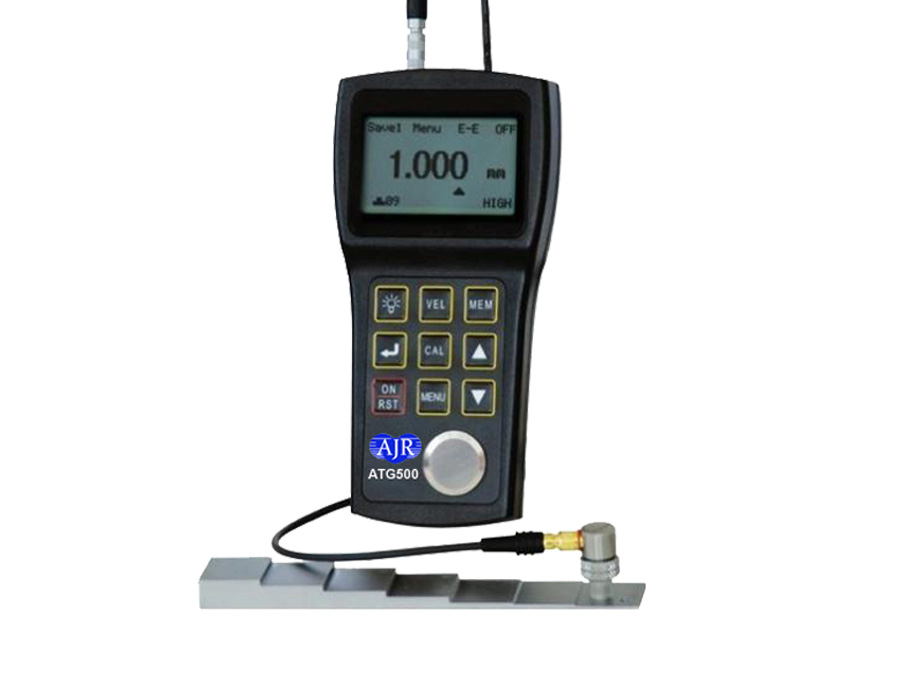

Single-crystal delayed probe is employed by ATG500 precise ultrasonic thickness gauge. The multi-echo is used to enhance the accuracy with the resolution of 0.0001’’ and the low limit of 0.012’’. There are two operating modes of ATG500 ultrasonic thickness gauge: I-E (interface-echo) mode and E-E mode. The measuring range of I-E mode is 0.059’’-0.709’’, while the measuring range of E-E mode is 0.012’’-0.394’’.
Specification|
Operating Principle |
I-E(interface-echo)mode with single-crystal delayed probe |
|
Measuring Range |
1.5～20mm (I-E mode) |
|
Unit and Display Resolution |
mm-0.001，0.01，0.1 |
|
Probe Zero Adjustment |
1-point Calibration |
|
Measuring Error |
±0.005mm(<3mm); ±0.05mm (<20mm) |
|
Display |
128×64 dot-matrix LCD screen with EL backlight (42mm×57mm) |
|
Measuring Update Rate |
4Hz in standard measurement mode |
|
Material Velocity Range |
1000～9999m/s，0.0394～0.3937in/us |
|
Data Logger Capacity |
Up to 500 readings can be divided into a maximum of 5 files(user-selectable) |
|
Operating Language |
English |
|
Power Supply |
Two 1.5V AA Alkaline batteries, warning with low voltage |
|
Operating Time |
Up to 200 hours with alkaline batteries (without backlight)depending on operating mode |
|
Auto-shut off |
After 5 minutes of non-use |
|
Size |
149mm×73mm×32mm (H×W×D) |
|
Weight |
200g including batteries |
Accessories
|
Standard Accessories |
ATG500 Main Unit |
|
Standard probe (single-crystal delayed probe) |
|
|
Carrying case |
|
|
Two 1.5V AA alkaline batteries |
|
|
Couplant |
|
|
Operating manual |
|
|
Certification of quality |
|
|
Packaging list |
|
|
Optional Accessories |

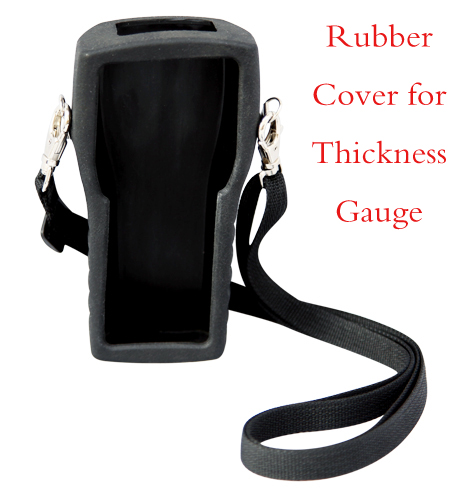

Attachable Rubber Sheath |
|
Application software with Data transmission cable |
