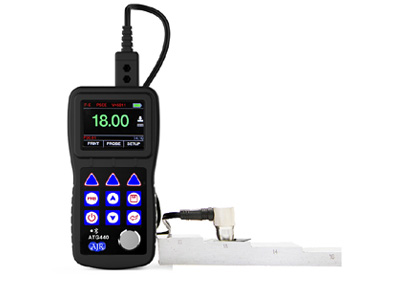

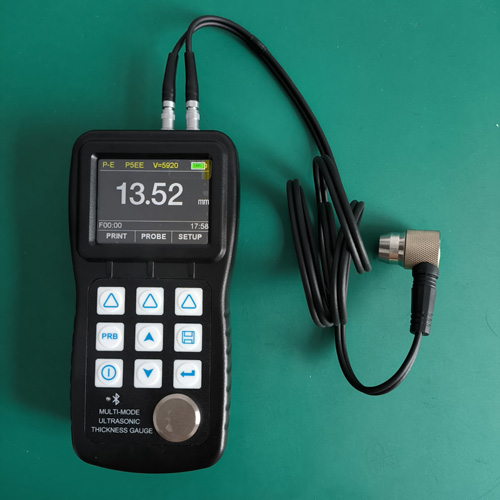

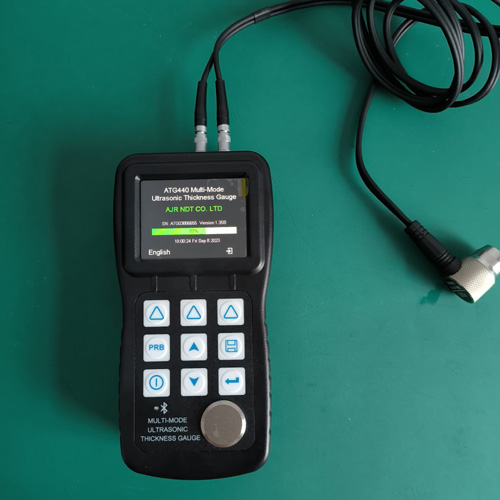

ATG440 Ultrasonic Through Coating Thickness Gauge
Introduction
ATG440 multi-mode ultrasonic thickness gauge is an upgraded product from ATG400. We pay more attention to user experience and innovative features such as visual experience, protection grade, automatic alarm and etc. Colorful TFT display (320×240 TFT LCD) with adjustable backlight, allow the user to work at worksites with low visibility. IP65 degree of protection can effectively prevent harsh field environments of oil, dust and other corrosion. It also has voice broadcast function, automatic alarm. 0.1mm/0.01mm/0.001mm resolution, bluetooth communication and penetrate the coating mode and normal mode functions and etc.. It can measure the substrate thickness without removing coating directly. Its unique non-destructive testing performance provides the perfect solution for the thickness testing of closed Pipes, containers, etc. It is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields because of monitoring corrosion thinning degree of various pipes and pressure vessels. It can also be used for precise measurement of sheet metal and machine parts. This professional precision instrument can improve production efficiency and qualified rate and cost saving.
Product Specifications
|
Specifications |
Technical Parameters |
|
Measuring Range |
Pulse-Echo mode: (0.65～600)mm Echo-Echo mode (Through coating mode): (3.0～100)mm |
|
Accuracy |
±0.04mm（≤10mm）；±0.4%H(>10mm)； |
|
Measurement Frequency |
Single-point measurements per second 7 times, 16 times a second scan mode. |
|
Display |
|
|
Resolution |
0.1mm / 0.01mm / 0.001mm switchable |
|
Sound Velocity Range |
(1000～9999)m/s（it can measure the sound speed of material with known thickness) |
|
Calibration |
Zero calibration, two-point calibration, automatic error correction system |
|
Working Modes |
Single-point measurement, the max value measurement, differential measurement |
|
Units |
Metric / Imperial unit optional |
|
Language |
English, Chinese, Germany, Italy, Spain, France |
|
Memory
|
Memory for up to 100 files (up to 100 values for each file) of stored values |
|
Communication Interface |
Support bluetooth and USB2.0 communication, the host program can be updated online. |
|
Power Source |
Two “AA” Size, 1.5 volt alkaline batteries，operating time is more than 30 hours (EL backlight off) |
|
Data Printing |
User can use portable bluetooth thermal printer to print measurement reports |
|
Automatic Power Saving |
Auto sleep and auto power off function to conserve battery life |
|
Appearance Properties |
Material: ABS plastic; size: 150mm × 76mm × 38mm; |
|
Weight |
295g |
l Capable of performing thickness measurements on a wide range of material including metals (such steel, cast iron, aluminum, copper and so on), plastic, ceramics, composites, epoxies, glass and other ultrasonic well-conductive materials.
l Sealed metal case delicate design, special designed for defense against bad site environment, it can anti vibration, shock and electromagnetic interference
l With HD colorful LCD display and intelligent operation interface, it can display the measurement results intuitively and provide a good display experience to user.
l With two thickness measurement modes: Pulse- Echo mode and Echo-Echo model, it can measure the thickness through the coating without calculating the coating thickness.
l With large storage capacity and lower power design, it can standby super long time above months.
l Attach with USB data proceeding software, it can connect with PC for data’s analysis, storage and printing.
l Capable for compatible with a variety of probes with different frequency and size.
l With high accuracy and high resolution display, it can support 0.001 display resolution.
l With probe-zero calibration and two point calibration functions, it can correct the system error automatically.
l Equipped with narrow impulse composite crystal high accuracy probe, it has small dead zone and accurate measurement.
l With high brightness EL backlight display, it is convenient for using in dim light environment.
l Support communication with Bluetooth printer on site, more conveniently for use.
l Auto alarm when exceeding the measuring range.
l With auto sleep, auto shutdown and other power saving functions as well as battery rest capacity indicating function.
Configuration
|
|
No |
Item |
Qty. |
Note |
|
Standard Accessories |
1 |
ATG440 Main body |
1 |
|
|
2 |
Probe P5EE(5MHz) |
1 |
|
|
|
3 |
Couplant Bottle |
1 |
|
|
|
4 |
Instrument Case |
1 |
|
|
|
5 |
USB Cable |
1 |
|
|
|
6 |
DataPro Software |
1 |
|
|
|
7 |
Operating Manual |
1 |
|
|
|
8 |
Packing List |
1 |
|
|
|
9 |
Guarantee Card |
1 |
|
|
|
10 |
Calibration Certificate |
1 |
|
|
|
Optional Accessories |
11 |
Probe P05/90°(5MHz) |
1 |
See Probe Selection Table |
|
12 |
Probe P07(7MHz) |
1 |
||
|
13 |
Probe PHT5(5MHz) |
1 |
||
|
14 |
Probe P02(2MHz) |
1 |
|
|
Model |
Freq MHz |
Diam mm |
Measuring Range |
Lower limit |
Description |
|
P5EE |
5 |
12 |
Echo-Echo mode: (3～30)mm for MT180, (3～60)mm for MT190.
|
Φ20mm×3.0mm |
Trough Coating Measurement |
|
P05 |
5 |
10 |
1mm～600.0mm（In Steel） |
Φ20mm×3.0mm |
Normal Measurement |
|
P05 /90° |
5 |
10 |
1mm～600.0mm（In Steel） |
Φ20mm×3.0mm |
Normal Measurement |
|
P07 |
7 |
6 |
0.65mm～200.0mm （In Steel） |
Φ15mm×2.0mm |
For thin pipe wall or small curvature pipe wall measurement |
|
PHT5 |
5 |
14 |
1～600mm （In Steel） |
30mm |
For high temperature (lower than 300℃) measurement. |
